Premier Direct Drive HVLS Fans

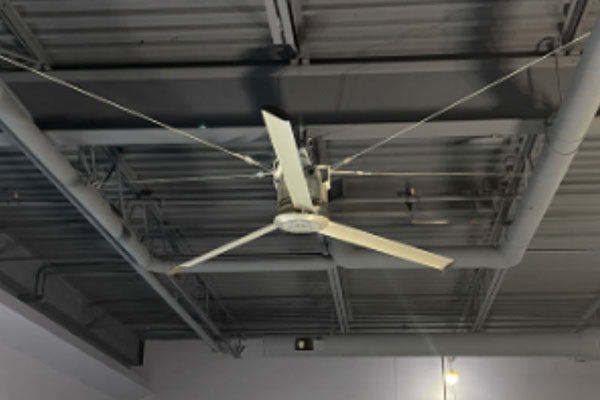

Our MiniProp series is perfect for smaller with a diameter range of 7 or 8 feet options. The quiet direct drive motor makes it ideal for places like fitness & shopping centers, automotive areas, offices, restaurants, and other sound sensitive spaces.
CUSTOM-ENGINEERED AIRFOILS
Equipped with three extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement, so environments become cooler faster.
WINGTIPS
Three wingtips constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards. Multiple color options available.
- Equipped with 3 wingtip fences
- Constructed of nylon 66
- Reduces wind noise and increases overall efficiency of fan
- Helps to redirect airflow down towards the occupants
- Comes in standard black, but multiple color options are available
ENVIRONMENTALLY DURABLE CHASSIS
1/4″ powder-coated steel and anodized aluminum resists rusting and corrosion even in cold and damp environments. Stainless steel safety brackets included.
MOTOR
Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
- Gearless Direct Drive Motor provides high output CFM with near silent operation
- IP65 – Water & dust tight
- Integrated onboard Variable Frequency Drive
- Simple integration into BMS using analog signal
- Includes a 15′ factory wired pigtail for ease of installation
STANDARD LIMITED WARRANTY
5 year: Motor, 1 year: Electronics, Lifetime: Airfoils and Hub Extended warranties available.
Powder Coated
