48" (240v) Powder Coated Black

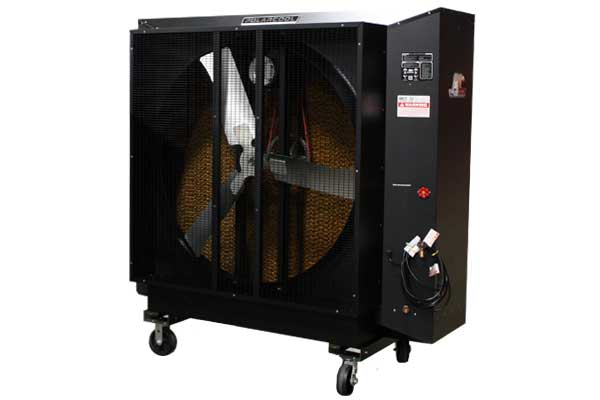

PolarCool 48" Evaporative Cooling System - Powder Coated Black, 240V (Part No. 6622-1300)

Deliver powerful, large-scale evaporative cooling with the PolarCool 48" (240V) - engineered for serious industrial cooling demands in warehouses, manufacturing facilities, distribution centers, and large commercial spaces. With an impressive 17,500 CFM airflow capacity and coverage up to 4,000 square feet, this industrial-grade evaporative cooling system provides efficient spot and area cooling where you need it, when you need it. The 240V configuration offers enhanced electrical efficiency for facilities with 230VAC power infrastructure.

How Evaporative Cooling Works

Evaporative cooling is a time-tested and efficient means of reducing air temperature, especially useful when the space to be cooled is well ventilated. The process requires just two factors: water and moving air. When air is forced through a water-saturated medium, some of the water is pulled away and quickly evaporates. This draws heat from the moving air, thereby lowering the ambient temperature — delivering energy-efficient cooling solutions without the high costs of traditional air conditioning.

Key Specifications

• Performance: CFM (Cubic Feet per Minute): 17,500
• Cooling Area: Up to 4,000 square feet
• Water Consumption Rate: 17 gallons per hour
• Fan Control: Speed Settings: Single speed for consistent, reliable operation
• Operation: Simple, straightforward control for industrial environments

Construction:

• Housing Material: Galvanized steel frame with durable black powder coat finish
• Design: Heavy-duty construction for demanding industrial and commercial applications
• Electrical: Voltage: 230 VAC (240V)
• Power Consumption: 11A at 230 VAC; 60 Hz
• Frequency: 60 Hz
• LED Indicators: No

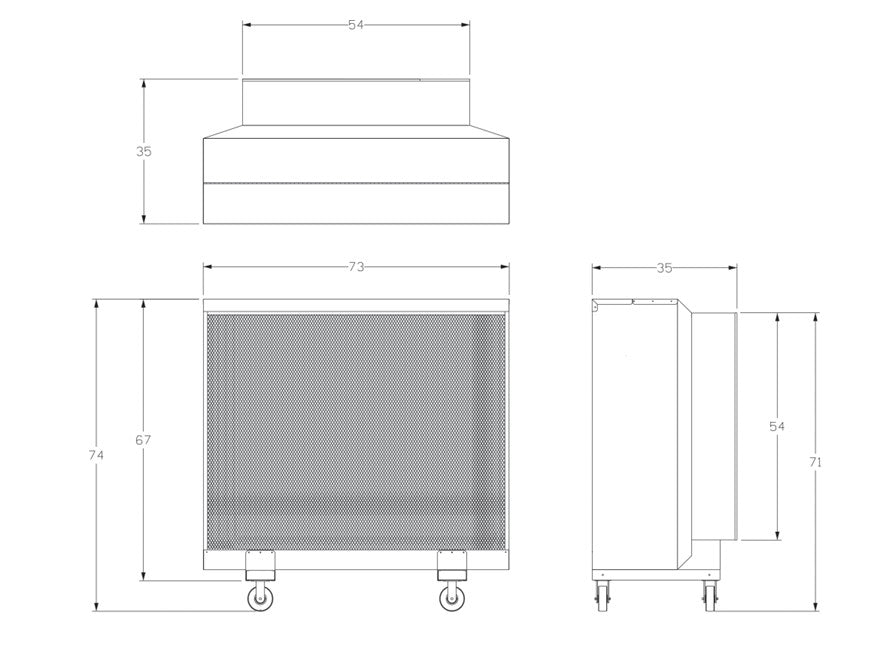

• Dimensions: Unit Dimensions: 73" W x 74" H x 35" D
• Shipping Dimensions: 80" W x 84" H x 44" D
• Mobility: Wheels Included: Heavy-duty wheels for easy repositioning across large facilities

Key Features & Benefits

• 500 CFM High-Volume Airflow: Exceptional air movement delivers powerful cooling for large areas up to 4,000 square feet, making this one of the best industrial evaporative coolers for warehouses, manufacturing floors, and distribution centers.
• 4,000 Square Foot Coverage: Designed for serious cooling demands in large commercial and industrial spaces where traditional air conditioning is impractical or cost-prohibitive.
• 240V Electrical Efficiency: 230 VAC operation at 11A provides improved electrical efficiency compared to 120V models, ideal for facilities with existing 240V power infrastructure and reducing current draw on electrical systems.
• Coated Pad Edges for Extended Life: Premium evaporative cooling media features edge coating for improved durability and extended service life, reducing maintenance frequency and replacement costs.
• Galvanized Steel Frame with Powder Coat Finish: Heavy-duty construction with professional black powder coat finish resists scratches, corrosion, and wear in demanding industrial environments.
• Portable Design with Wheels: Heavy-duty wheels allow easy repositioning to direct cooling where it's needed most — perfect for flexible warehouse layouts and changing production needs.
• Single Speed Reliability: Straightforward single-speed operation ensures consistent performance without complex controls, ideal for industrial environments requiring dependable cooling.

Applications

The PolarCool Pro 48" (240V) is ideal for:

Industrial Facilities:

• Warehouses & distribution centers
• Manufacturing facilities and production floors
• Assembly lines and work areas
• Loading docks and shipping areas
• Industrial workshops and fabrication shops
• Metal working and machining facilities

Commercial Spaces:

• Large retail stores and big-box retailers
• Commercial garages and service centers
• Automotive facilities and body shops
• Equipment maintenance facilities
• Commercial laundries and dry cleaners

Agricultural Operations:

• Livestock barns and dairy facilities
• Greenhouse cooling and ventilation
• Equipment storage and maintenance buildings
• Processing and packing facilities

Special Applications:

• Construction sites with temporary power
• Event venues and convention centers
• Sports facilities and gymnasiums
• Aircraft hangars and maintenance facilities
• Food processing and packaging facilities (with proper ventilation)

Why Choose PolarCool?

• Lower Current Draw: 11A at 230VAC vs.18A at 120VAC for the same cooling power
• Reduced Wire Size Requirements: Lower amperage allows for smaller gauge wiring
• Better for Long Power Runs: Less voltage drop over distance
• Compatible with Industrial Power: Matches existing 240V infrastructure in many facilities

Evaporative Cooling Advantages:

Energy Efficient: Uses up to 75% less energy than conventional

AC systems Eco-Friendly: No harmful refrigerants or chemical coolants

Cost-Effective: Lower operating costs and minimal maintenance requirements

Fresh Air Circulation: Constantly introduces fresh outdoor air (requires adequate ventilation)

Portable Flexibility: Move cooling power wherever it's needed most

Effective in Dry Climates: Works best in low-to-moderate humidity environments

Large Area Coverage: Cool expansive spaces without expensive ductwork

Operating Considerations

For optimal performance:

Ventilation Required: Evaporative cooling works best in well-ventilated spaces. Ensure adequate airflow by opening doors, windows, or using exhaust fans.

Best Performance: Most effective in environments with relative humidity below 60%

Water Supply: Consumes approximately 17 gallons per hour during operation

Maintenance: Replace evaporative cooling pads regularly for consistent performance (replacement pads available separately)

Electrical:

Requires 230 VAC power supply: verify electrical compatibility before installation

Energy Efficiency & Cost Savings

The PolarCool 48" (240V) delivers exceptional cooling at a fraction of the cost of traditional air conditioning. With 11A power consumption at 230VAC, this unit provides warehouse cooling and industrial air cooling solutions that significantly reduce energy bills while maintaining comfortable working conditions. The 240V configuration offers improved electrical efficiency, making it perfect for facilities seeking energy-efficient cooling solutions that don't compromise on performance.

Professional-Grade Construction

Built to withstand the rigors of industrial environments, the galvanized steel frame with powder coat finish ensures long-lasting durability. The coated pad edges extend evaporative media life, reducing replacement frequency and maintenance costs. Heavy-duty wheels facilitate easy repositioning, making this the ultimate portable evaporative air cooler for dynamic facility layouts requiring 240V power.
